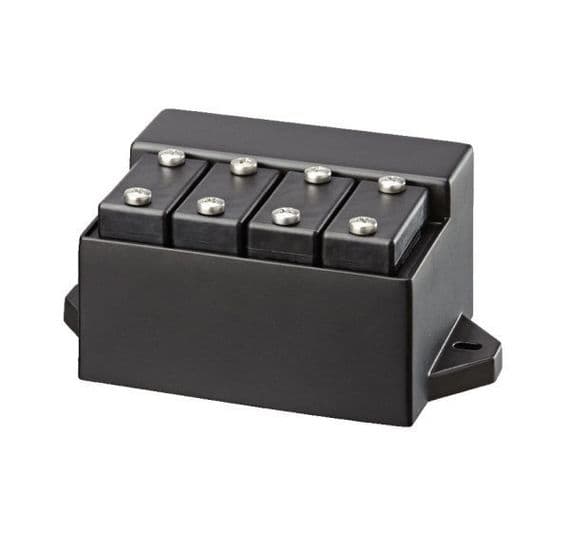

OASE 24v Underwater transformer

Product code: 57821
185.00 150.41 (ex. VAT)
Fully submersible underwater transformer for use with Oase Lunaqua LED light system
PayPal Checkout

LunAqua Power LED XL Driver 30w

  • The LunAqua Power LED XL Driver is used to power the OASE LunAqua Power LED XL  (maximum of 2 lights)  or the Oase  Power LED lights (maximum of 4 lights) range of lights.

  • For use in water fountain systems and ponds

  • The Power LED Driver (often referred to as a transformer) can operate a maximum of 30 watts load, so 2 of the Lunaqua Power LED XL Lights (15 watts each), for a maximum of 30 watts total load  or 4 of the Lunaqua Power LED lights

    This driver/transformer is IP68 rated device, meaning it is capable of being installed underwater as well as above ground, along with its associated LED lighting fixtures which are also fully submersible. The lights connect to the driver via special watertight screw and gasket fittings.

    This driver can also be used to supply a combination of 1 x LunAqua Power LED XL and 2 x LunAqua PowerLED, which is why the unit features 4 power outlets.

LED Lighting Connection Options within 30 Watt Limit

  • 1 x LunAqua Power LED XL Light (15 watts).
  • 2 x LunAqua Power LED XL Lights (30 watts).
  • 1 x LunAqua Power LED Spotlight (5.8 watts).
  • 2 x LunAqua Power LED Spotlights (11.6 watts).
  • 3 x LunAqua Power LED Spotlights (17.4 watts).
  • 4 x LunAqua Power LED Spotlights (23.2 watts).
  • 1 x LunAqua Power LED XL Light + 1 x LunAqua Power LED Spotlight (20.8 watts).
  • 1 x LunAqua Power LED XL Light + 2 x LunAqua Power LED Spotlights (26.6 watts).

TECHNICAL DATA

Dimensions (L x W x H) 167 x 94 x 70 mm
Rated voltage (primary, secondary) 230 V / 50 Hz, 0 - 24 V / 350 mA / DC / 700 mA / DC
Power consumption 30 watts
Number of cable outputs 4
Power cable length 3 metrers
Protection class IP 68  ,Submersible to 4 m depth
Net weight 2 kg
Guarantee (+ request guarantee) * 2 + 1 year
Connection EGC No
Brand Oase
Product Code 57821
Weight 2kg
